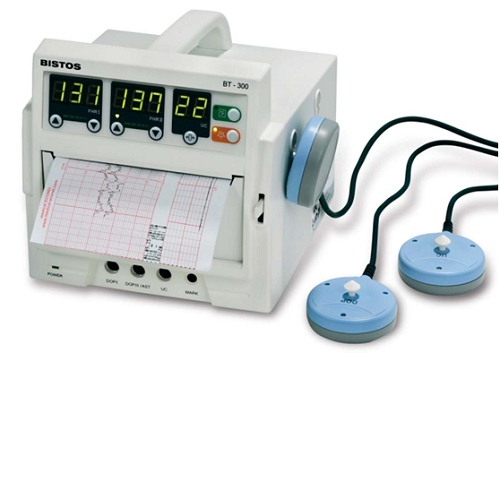

Specifications:

• Easy to use
• Portability: compact design with built-in handle enable use especially to midwives
• 7-segment numeric LED
• High sensitive 0.985 MHz
• Fetal movement
• Auto-print function
• Compact and light weight

FHR:

• Pulsed Doppler Twin
• Ultrasound frequency: 0.985 MHz
• Intensity: ≤ 10 m W/
• FHR range: 30 -240 bpm
• FHR accuracy: ±2 % of range

Dimensions: 191(H) × 187(W) × 201(D) mm

Weight: 5 Kg

FM: Auto Twin Detection

UC:

• Measurement range: 0~100 units
• Frequency response: DC ~ 0.5 Hz
• External type
• Reference (zero) control

Printer: Z-fold( 130 mm(W), 20.5 m (length)),Thermal array type, Print speed: 1, 2, 3 cm/min, Paper feeding

Display: 7-segment LED, 3channel (FHR I, FHR II, UC), FHR Quality (green (stable), Red(HR Searching) (heart symbol))

Sound:

• Information sound: probe disconnection, door open.
• Alarm sound: exceed HR limit
• Doppler sound

Function:

• Zoom-in
• FM graph print
• Event Mark
• FHR 2 Offset
• Auto print: off,10,20,30,40,50,60 min

Set-up:

• alarm upper/lower limit value
• print speed, construct
• time & date

Power: Input: AC 100~240 V (50/60Hz), Output: DC 18 V, 2.5 A, Consumption: 80 VA

Certificates: KFDA, CE, FDA

Standard:         EN60601-1, EN60601-1-2

EN60601-2-37

Classifications: Class II, type: BF, Waterproof: DOP & UC probe: IPX8
