sonopuls 490

Enarf-Nonius International

sonopuls 490

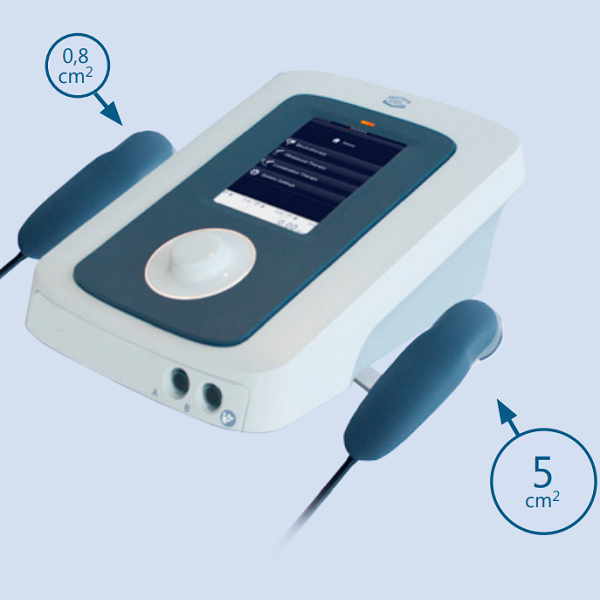

The Sonopuls 490 is the ultrasound therapy device from the Enraf-Nonius 4 series. You will be able to select the correct application for every pathology with both 1 MHz and 3 MHz applications and by selecting a small and/or large treatment head.

The Sonopuls 490 has 25 evidence-based protocols for ultrasound therapy; all of which are substantiated applications that guarantee an effective therapy.

 The Sonopuls 490 can (optionally) be provided with a battery-operated power supply, which will give you freedom. It is easy to take the Sonopuls 490 with you. The device will always be ready to use thanks to the battery-operated power supply. Regardless of whether it is next to the patient’s bed, in the patient’s home or in the changing room of a sports club, the Sonopuls 490 is your reliable companion where ultrasound therapy is concerned.

The Sonopuls 490: the complete, easy-to-use, fast and safe device for ultrasound therapy!

ULTRASOUND THERAPY Equipment for therapy using high frequency sound waves. The high frequency vibrations can cause a mechanical and thermal effect in the tissue. Ultrasound therapy promotes the body’s capacity for selfhealing and tissue repair


 Power supply 100 – 240 V ± 10% / 50 / 60 Hz

Dimensions (WxDxH)

 Device 24 x 32 x 12 cm

 Device with base 24 x 30.5 x 18.2 cm

Device with Vacotron 24 x 30.5 x 21.6 cm

Weight 2 kg

Weight, including the optional battery 3 kg


 Ultrasound frequencies 1 en 3 MHz

 Ultrasound continuous and pulsed

Duty cycles 5, 10, 20, 33, 50, 80%

Pulse frequency 16 Hz, 48 Hz en 100 Hz

Intensity 0-2 W/cm2 continuous  , 0-3 W/cm2 pulsed(1)

 Number of US connections 2

 Multi-frequency treatment head large 5 cm2

Multi-frequency treatment head small 0,8 cm2

 Pre-programmed treatment suggestions 25 - Evidence Based

 Programmable positions 1000+

 (1) = Except 80%, which has a maximum of 2,5 W/cm2


Multi-frequency treatment head large 5 cm2


Multi-frequency treatment head small 0,8 cm2
